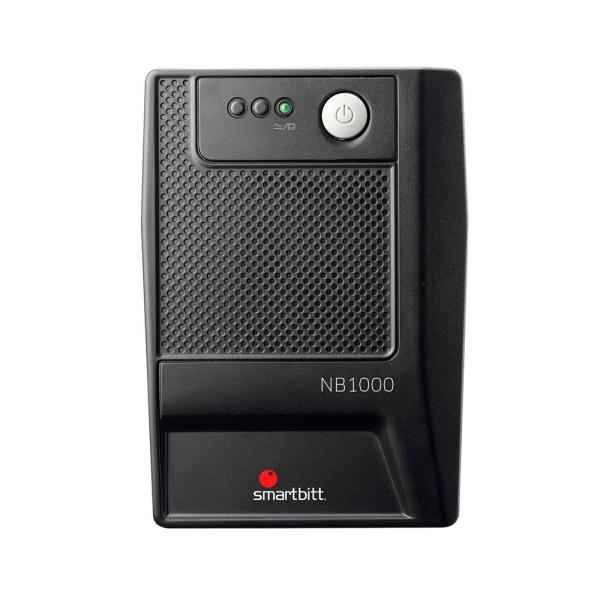

SMARTBITT UPS 1000VA/500W SBNB1000

Detailed description of the SMARTBITT SBNB1000 UPS

Power and electrical capacity

• Nominal capacity: 1000 VA / 500 W

• Input: 120 V AC with a regulation range of 90–145 V and frequency of 50/60 Hz

• Maximum input current: 7 A

Exits and backup

• 6 NEMA 5-15R outlets that combine battery backup, voltage regulation, and surge protection

• Output waveform: simulated sine wave in battery mode

• Transfer time to battery mode: ≲ 4 ms

• Internal battery: 1 × 12 V 9 Ah (lead-acid)

• Approximate backup times:

  • ~4 minutes at 100% load

  • ~12 minutes at 50% load

• Charging time: 4 hours up to 90% charge

Protection and regulation

• Topology: Line interactive with AVR (automatic voltage regulation) to stabilize electrical variations

• Protection functions:

  • Surge protector

  • Protection against overload, short circuit and EMI/RFI noise

• Additional protection for telephone/modem lines: dedicated RJ-11/45 port

Indicators and monitoring

• Indicator LEDs for:

  • Power on (solid green)

  • Battery mode (flashing + beep every 10 s)

  • Low battery (flashing + beep every second)

  • Overload (flashing + beep every 0.5 s)

• Continuous audible alarm in case of failure It has a battery self-test and an option to silence the alarm using monitoring software (when connected via USB).

• Monitoring port: USB type B

Design and certifications

• Form factor: Compact tower , ideal for offices and small spaces

• Dimensions: about 275 × 96 × 144 mm (length × width × height)

• Weight: 4.9 kg

• Noise level in operation: < 40 dB

• Certifications: CE, ISO 9001, ISO 14001, TUV, NOM, RETIE (depending on region)
