MOTHER CARD MSI MAG B860 TOMAHAWK WIFI LGA1851 ATX DDR5 911-7E39-001
Availability: In stock
Tax Info: Tax included. Shipping calculated at checkout.
Collection: Components, High-tech CR | Technology and Gaming in Costa Rica: Buy Laptops and More, Motherboards
Sku: -
Vendor: High Tech
Unite as One

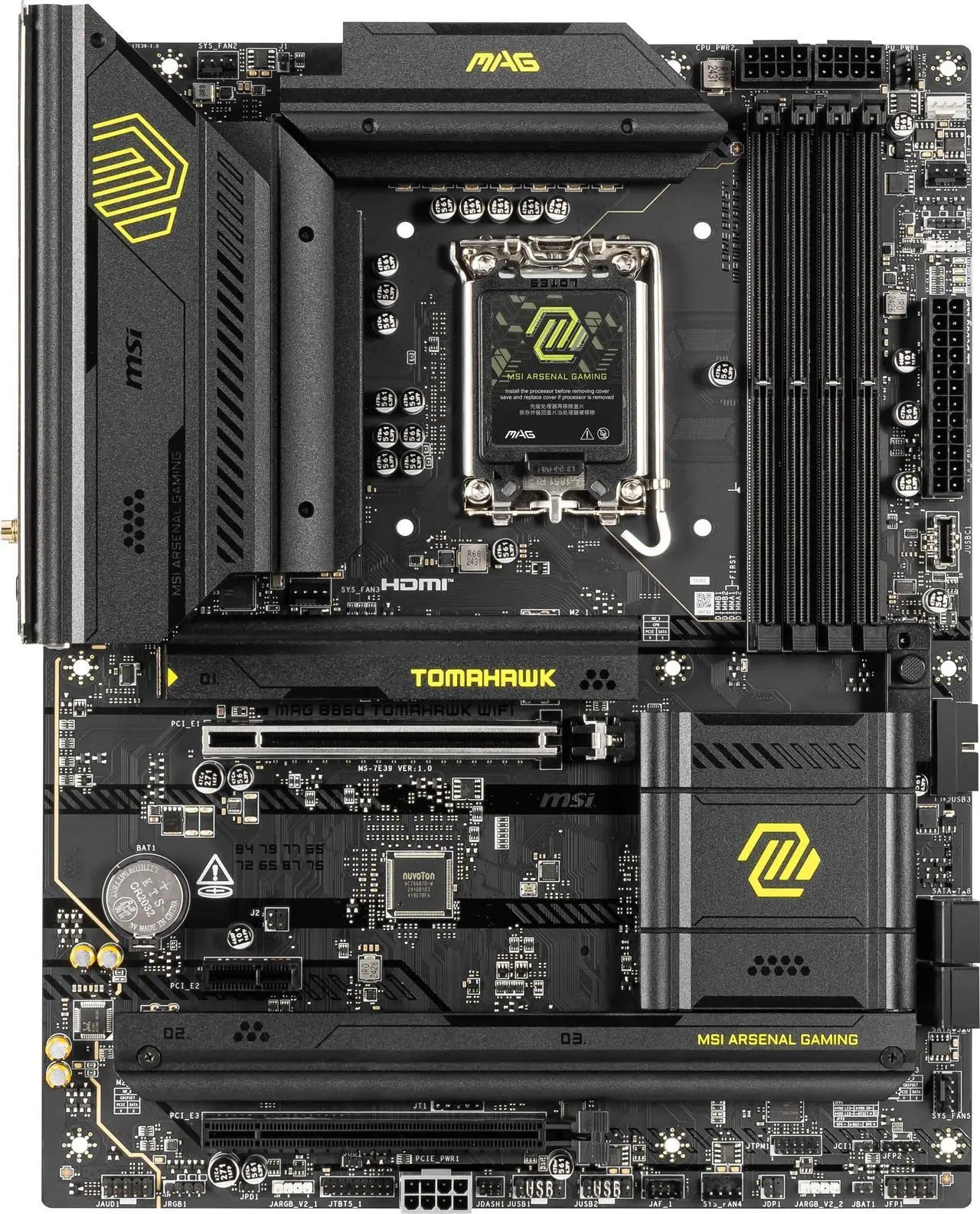

The MAG B860 TOMAHAWK WIFI is an Intel LGA 1851 gaming motherboard, offering cutting-edge connectivity features such as Wi-Fi 7, 5G LAN, Thunderbolt 4, PCIe 5.0, and M.2 Gen5. Designed for AI-PC and EZ DIY, it is the premium B860 ATX motherboard for Intel Core Ultra processors.
Supports Intel Core Ultra Processors (Series 2)
The MAG B860 TOMAHAWK WIFI motherboard supports Intel Core Ultra (Series 2) processors.
- Form Factor: ATX
- Pocket Type: LGA 1851
- Chipset: B860 Intel
Ultra Power - 12 Duet Rail Power System with 60A Smart Power Stage
With exclusive Core Boost technology and dual 8-pin power connectors, the MAG B860 TOMAHAWK WIFI can handle heavy CPU power loads to support gaming configurations that demand the system:
- Digital PWM IC
- 12 Duet Rail Power System with 60A SPS
- 1-Phase SA Power
- 1-phase GT power
- 1-Phase VNNAON Power
Frozr Design
- Frozr Guard: Extended heatsink design, 7W/mK MOSFET thermal pads, additional throttling thermal pads, and EZ M.2 Shield Frozr II for improved thermal dissipation.
- Frozr Sync: Connect and sync cooling with strategically placed pin headers including the CPU Fan Header (2A), Combo Fan (3A, supports both pump fan and system fan), and system fans.
- Frozr Control: Manage speeds and temperatures for all your system fans in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (9200+ MT/s OC)*
- Memory Boost: A fully isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
- XMP profiles in MSI BIOS are optimized for MSI OC LAB and can be easily enabled with auto power settings to optimize memory speed and stability.
* 1DPC 1R Max. overclocking frequency 9200+ MT/s, compatible with Intel XMP.
1 x Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with additional solder points to support the weight of heavy graphics cards. When every gaming advantage counts, Steel Armor II also protects the contact point from electromagnetic interference.
- 1 x PCIe 5.0/4.0/3.0 x16 slot* (one with Steel Armor II and EZ PCIe Release)
- 1 x PCIe 4.0/3.0 x1 slot*
- 1 x PCIe 4.0/3.0 x16 slot*
* Support x16/x0/x4 or x16/x1/x2
** MSI Surface Mount Technology (SMT) soldering improves signal clarity.
Gen5 M.2 connectors
The MAG B860 TOMAHAWK WIFI motherboard features the latest M.2 slots:
- 1 x Gen5 x4 128Gbps slot* (With single side M.2 Shield Frozr)
- 2 x Gen4 x4 64Gbps Slots*
* With M.2 Shield Frozr
EZ DIY
DIY Friendly designs optimize the assembly process and experience.
EZ M.2 Shield Frozr II: MSI's patented Shield Frozr cover features a tool-less design so users don't have to worry about losing screws or over-tightening them.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using screws.
EZ PCIe Release: With the push of a button, users can easily install or remove the graphics card with one hand.
EZ Antenna: MSI's latest Wi-Fi antenna not only features a beautiful appearance, but also features a magnetic design, making it easy to adjust the antenna location.

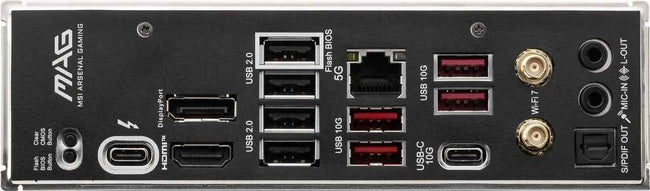

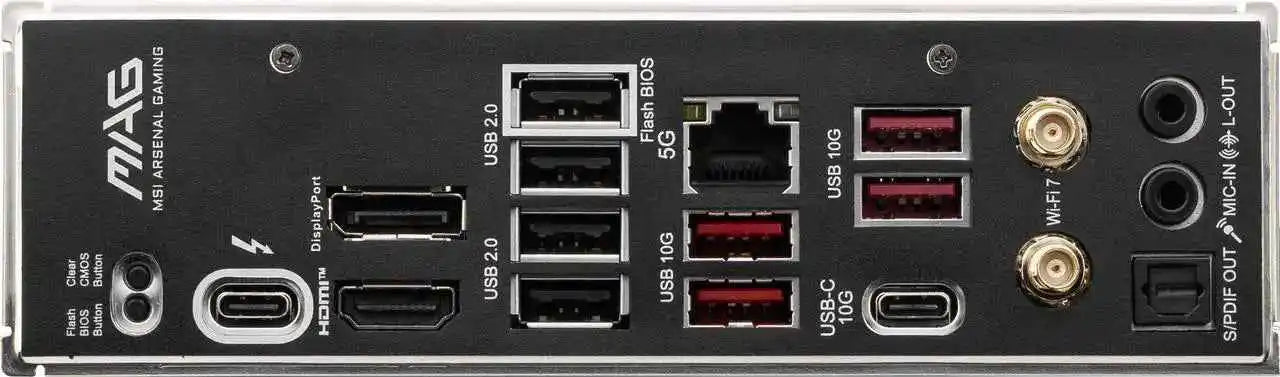

Ultra Connection
- 5G LAN: An Intel Killer 5G LAN controller delivers a premium network gaming experience.
- Thunderbolt 4 Type-C: Daisy-chain your devices and transfer files at high bandwidth speeds of up to 40Gbps, with 8K/60Hz display support*.
- Wi-Fi 7: Features the latest Wi-Fi 7 solution (ultra-low latency, high bandwidth) and Bluetooth 5.4 technology.
- HD Audio: 7.1-channel USB HD Audio with Audio Boost and S/PDIF output.
* Available only on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU.
