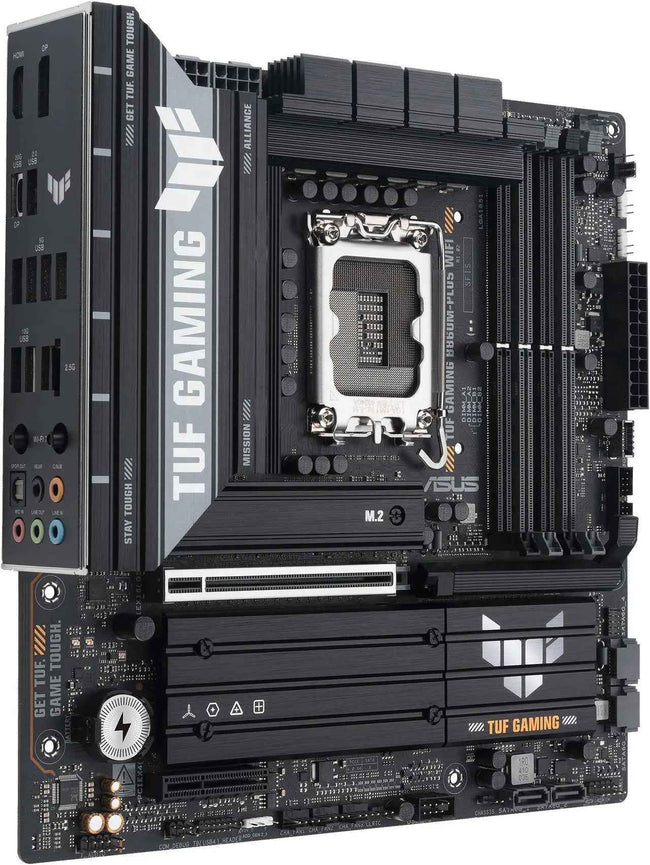

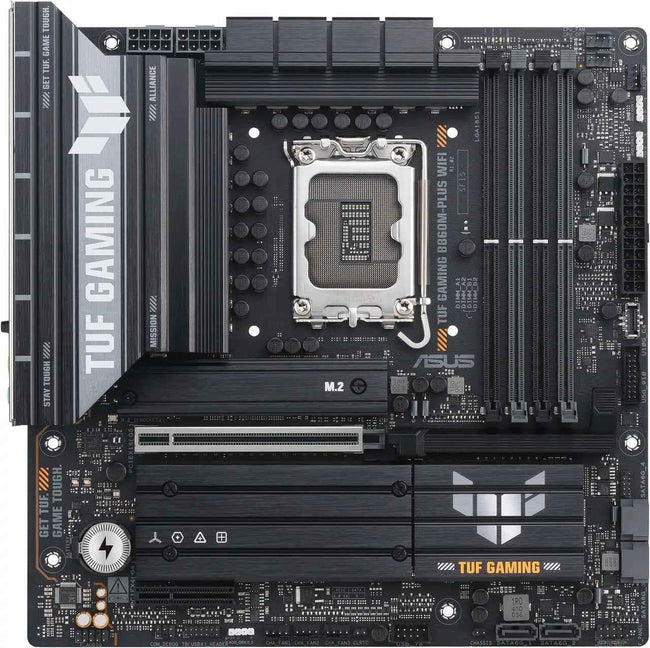

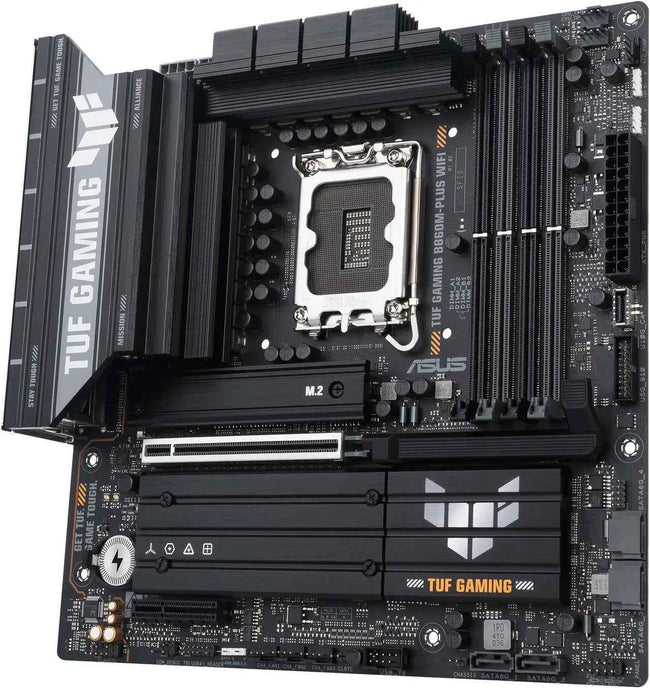

ASUS TUF GAMING B860M-PLUS WIFI MOTHER CARD LGA1851 mATX DDR5 90MB1JV0-M0EAY0

Place your order before to receive it by Sun, Oct 05, 2025 (Estimated delivery time for products within the CR country)

Ask about this product

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
Intel LGA 1851 Socket: Ready for Intel Core Ultra (2 Series) Processors
Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8+8-pin ProCool power connectors, alloy chokes, and durable capacitors for stable power delivery
Optimized Thermal Design: Large VRM heatsinks, M.2 and PCH heatsinks, hybrid fan headers, and Fan Xpert 4
Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with M.2 heatsink
Ultra-fast connectivity: PCIe 5.0 x16 slot, rear 20Gbps USB Type-C port with DP Alt Mode, front 10Gbps USB Type-C connector
High Performance Networks: Onboard Wi-Fi 7 (802.11be) and Realtek 2.5 Gb Ethernet
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack and I/O shield pre-mounted

Model
Brand	ASUS
Model	TUF GAMING B860M - PLUS WIFI
Part Number	90MB1JV0-M0AAY0

Compatible CPU
CPU Socket Type	LGA 1851
CPU type	Intel Core Ultra Processors (Series 2)

Chipsets
Chipset	Intel B860

Memory
Number of Memory Slots	4x288pin (DDR5)
Standard Memory	Up to 8800+ MT/s (OC)
Maximum Compatible Memory	192GB
Supported Channel	Dual Channel
Memory Feature	Support up to 8800+MT/s (OC), Non-ECC,Un-buffered,Clocked Unbuffered DIMM (CUDIMM)* Dual Channel Memory Architecture DIMM Setting Supports Intel Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMPIII) * Non-ECC unbuffered DDR5 memory supports On-Die ECC function.

Expansion Slots
PCI Express 5.0 x16	Intel Core Ultra Processors (2nd Series) 1 x PCIe 5.0 x16 slot
PCI Express x4	Intel B860 Chipset 1 x PCIe 4.0 x4 slot

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel Core Ultra Processors (2nd Series)* M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID	* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

On-board audio
Audio Channels	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports playback up to 24-bit/192 kHz Audio Features - Audio Shield - Rear optical S/PDIF output port - Premium audio capacitors - Dedicated audio PCB layers

LAN on board
Maximum LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ser
Bluetooth	Bluetooth 5.4

Rear Panel Ports

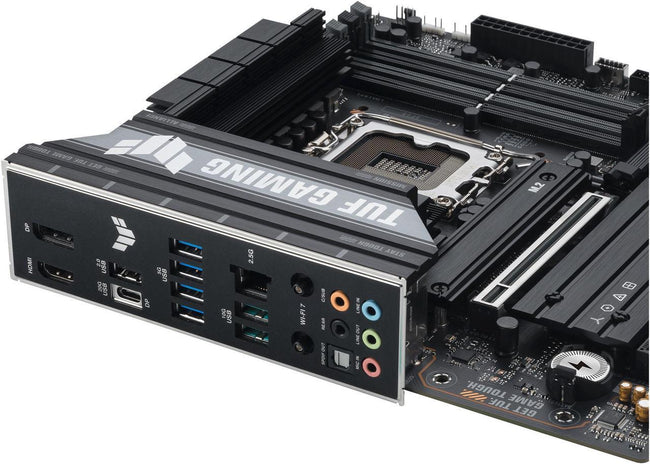

Return I/O Ports	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 2 X USB 10Gbps ports (2 x Type-A) 4 X USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 5 x audio connectors 1 x S/PDIF optical output port

Internal I/O connectors
USB on board	1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU fan header 1 x 4-pin CPU OPT Fan Header 1 x 4-pin AIO pump head 3 x 4-pin chassis fan headers Several 3 x Gen 2 Addressable Headers 1 x Clear CMOS Header 1 x Chassis intrusion head 1 x Front Panel Audio Header (F_AUDIO) 1 x 10-1 pin Front System Panel Header 1 x Thunderbolt header (USB4)

Software Feature
BIOS Feature	2 x 128 Mb Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armory Staff - AURA Creator - AURA Sync - Fan Xpert 2+ - Energy saving ASUSHub Driver ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60-Day Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY ASUS CrashFree BIOS 3 - Flash ASUS EZ ASUS UEFI BIOS EZ Mode ASUS MyHotkey NPU push
Windows 11	Windows 11

Physical Specification
Form Factor	ATX Micro
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin main power connector 2 x 8-pin +12V CPU Power Connectors

Characteristics
Characteristics	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless steel rear I/O ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release - Q-Antenna - Q-Dashboard Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) ASUS Thermal Solution - M.2 heat sinks - VRM heatsink design ASUS EZ DIY - CPU Pocket Lever Protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Synchronization - Gen 2 Addressable Headers

Packaging
Package Contents	Cables 2 x SATA 6Gb/s cables Several 1 x ASUS WiFi Q-Antenna 2 x M.2 Rubber Packs 1 x TUF Gaming Sticker 1 x Screw Pack for M.2 SSD Documentation 1 x Quick Start Guide
