MSI GEFORCE RTX 5060 TI 8G GAMING TRIO OC WHITE VIDEO CARD

Key technical specifications

MSI GEFORCE RTX 5060 TI VIDEO CARD

• GPU : NVIDIA GeForce RTX 5060 Ti (Blackwell 2.0 architecture, 4N, TSMC) with 4,608 CUDA cores, 144 TMUs, 48 ​​ROPs , 36 SM, 36 RT cores and 144 Tensor cores TechPowerUp Wikipedia .

• Frequency :

  • Base: ~2 407 MHz

  • Boost: ~2 647 MHz (light OC) TechPowerUp Accelerator .

• Memory : 8GB GDDR7, 128-bit, effective speed of 28Gb/s, approximate bandwidth of 448GB/s TechPowerUp Accelerator Wikipedia .

• Bus : PCIe 5.0 ×16 (electrically ×8) TechPowerUp Accelerator .

• Video outputs :

  • 3x DisplayPort 2.1b

  • 1× HDMI 2.1b

  • Supports up to 8K, VRR, HDR Razorman.net IT News HACOM Accelerator .

• Power consumption (TDP) : 180 W; recommended 600 W Accelerator HACOM TechPowerUp power supply.

• Dimensions and weight :

  • Size: 300 × 125 × 44 mm

  • Weight: 839 g Razorman.net IT News Accelerator HACOM .

Design and cooling

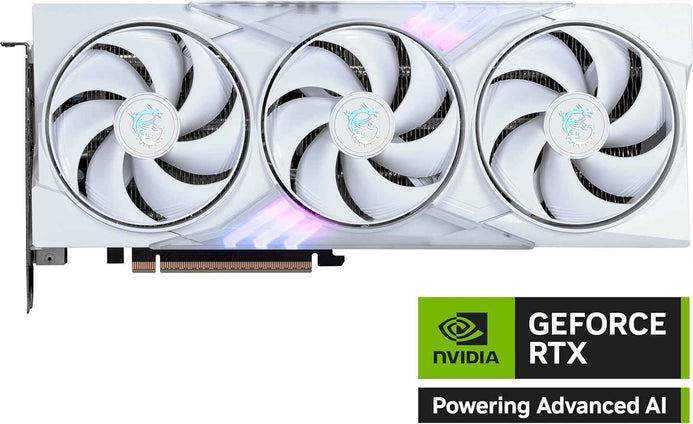

• TRI FROZR 4 Thermal System with Triple STORMFORCE Fans, Claw Blades, and 0dB Idle Mode for Quiet Operation Razorman.net Computer News The IT Handyman .

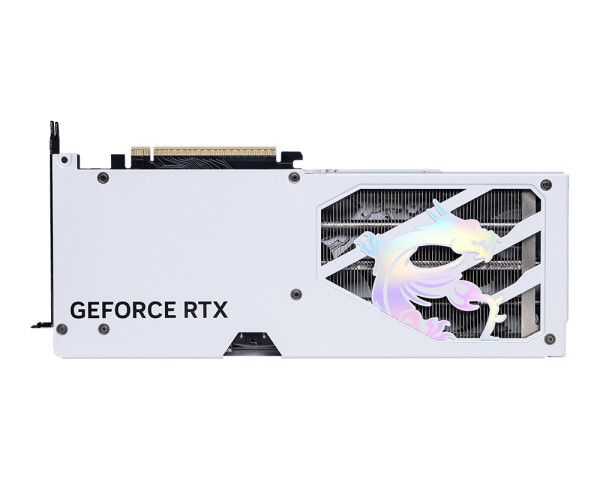

• Robust structure : plastic casing with translucent areas, customizable ARGB lighting (via Mystic Light), and an aluminum backplate with strategic ventilation and the Razorman dragon design.net Computer News alktech.co .

• High thermal performance : in real-life tests, average temperatures of ~60 °C under load and very low noise levels (≈ 37.5 dBA) are achieved. El Chapuzas Informático .

• Useful extras : 16-pin (12VHPWR) to 2×8-pin adapter, card holder and other utilities included Accelerator alktech.co .

Performance and market context

• Comparative power : it performs close to an RTX 4070 , with an estimated 18% increase over an RTX 4060 Ti, especially in gaming at 1080p and 1440p with DLSS 4 Wccftech .

• Highlighted Overclocking : Up to 10% FPS improvement with mild overclocking, especially at 1080p; still competitive against base RTX 5070 PC Gamer Wccftech versions.

• VRAM Limitations : 8GB may fall short in modern games at high resolutions, though the competitive price makes up for it for current users Wccftech Arcade News Wikipedia .
